Design Sprint: St. Paul Parking Permits

Justina Schiroo · March 19, 2017

This exercise was a 1-hour sprint to practice the UI design process.

It was motivated by the parking permit process for residents of 29 designated permit areas in St. Paul. The purpose of this system is to make sure that non-resident cars are not parked in these zones for extended periods of time. Right now to get a permit residents must apply in person at the Traffic Operations Building that is only open 7:30 am - 4:30 pm M-F, which is a difficult window for people with jobs. This process ends up being frustrating at the very least.

I redesigned the UI of the website to allow for online permit applications, in order to improve the process of getting a permit. This system needs to establish that an applicant lives in a permit zone, and record residency information, vehicle information and take payment. From the resident’s perspective, it needs to be easy to see if they need a permit, and flexible enough to accept the residency and vehicle information that they have on hand. Residents want to be able to apply for or renew their permits online at their convenience. Permit enforcement wants residents to have current permits placed correctly on their vehicles to make enforcement easier.

Search for address

Residents begin by entering their address to either find their zone or find out that they do not need a permit.

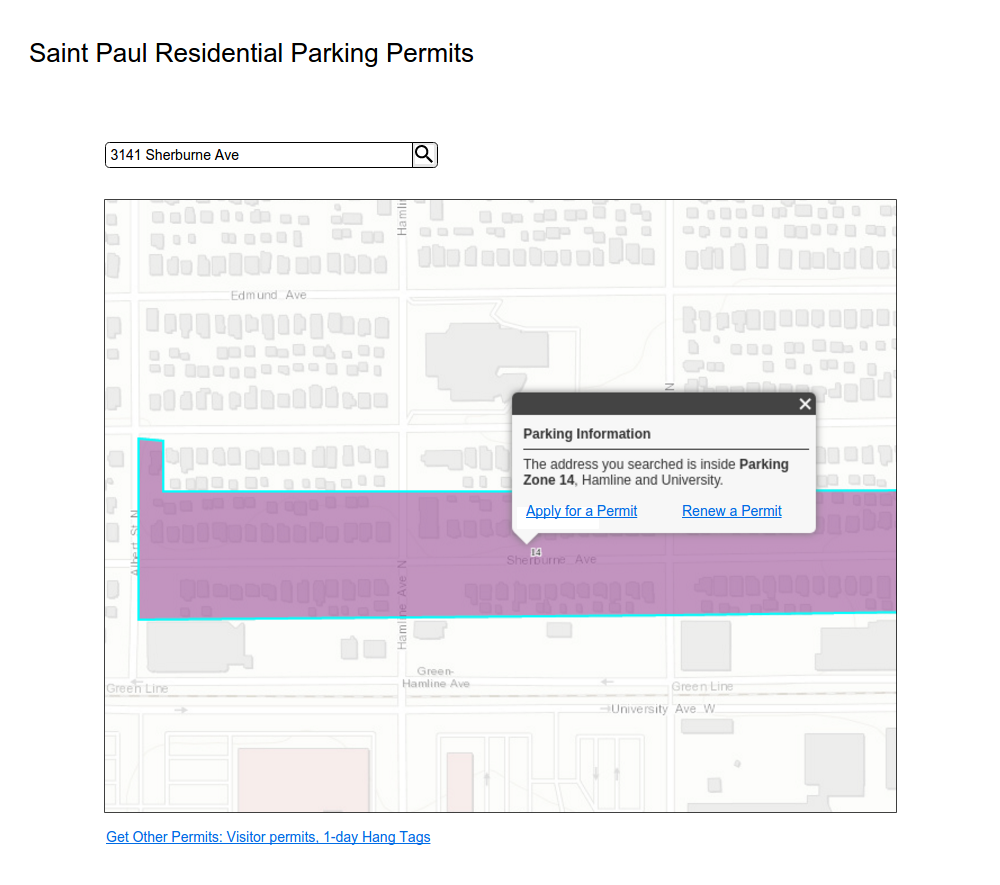

map result - permit needed

map result - no permit needed

Applying for a permit requires residency information, most often confirmed by driver’s license. Since residents may be applying for a permit because they recently moved to the zone, they need the option to provide further proof of residency.

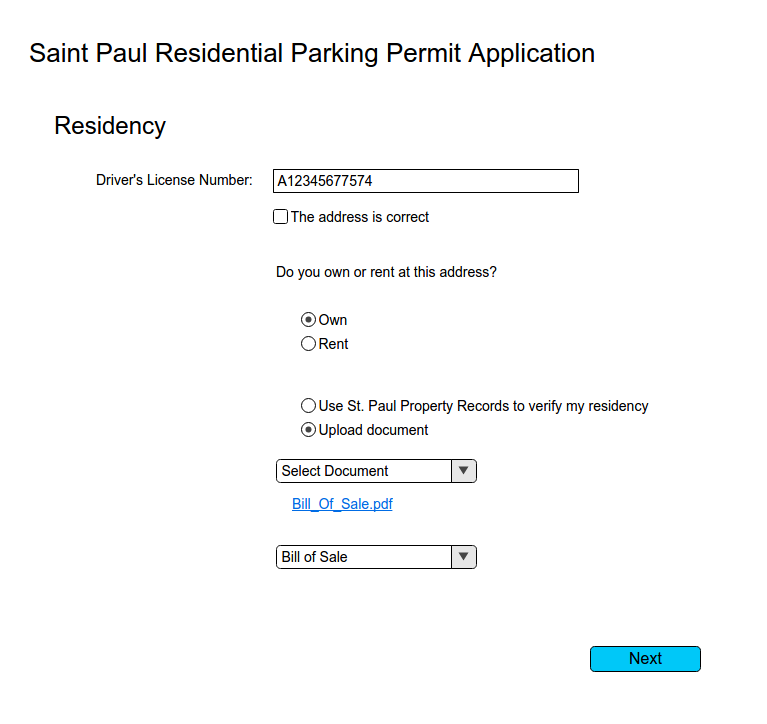

residency entry screen

For renters a lease, utility bill or notarized statement can be used to establish temporary residency in the zone which will need to be reviewed by hand.

Residency verification selection

Once residency can be verified, the applicant moves on to the next section.

Upload residency document

Vehicle information can be confirmed by title or registration number, uploading an insurance card, or the VIN. The VIN provides vehicle description, or it can be entered manually.

Vehicle information

After they have entered their residency and vehicle information, they might need the option to add another permit or a special permit.

Permit summary page

If they select to add other permits, it takes them through the registration process for those permits. Otherwise, applicants pay for the permits they selected.

Payments page

After paying, they see a confirmation screen that gives them a processing number for trackability, an estimated timeline, and the option to receive updates. Transparency in a government system like this builds trust with users.

Successful submission screen

Once residents receive their permits, they also get an instruction diagram visually describing how to place the permit on their vehicle. Visual instructions help to reduce confusion and increase compliance by mapping directly to the user’s context.

Permit placement diagrams

If a resident were to have selected to purchase other permits, they would select the type and number of each, shown the total and summary screen, and pay for the special permits.

Special permit selection screen

They would receive a similar confirmation screen, along with a diagram for placement upon receiving their special permits.

Special permit placement diagrams

For current residents seeking to renew their permits, the process is streamlined, since their information is already entered. They first search for their existing permit by name, number or address.

Permit renewal screen - search for permit

The system finds their record, and they are prompted to confirm or add a new permit.

Existing permit search results

Finally, they reach the payment screen and confirmation page as with the permit application, and receive an instruction diagram with their renewed permits.

This redesigned UI makes it easier for residents to apply for and renew their permits for the St. Paul parking permit zones. I made assumptions in this design sprint, including the ability of staff to access information such as property tax information, drivers license numbers, title and registration numbers and VINs. I also assumed that as in the current system employees will be able to verify uploaded documents to check residency and vehicle information.

Since this was only a 1-hour design sprint, there are several aspects that I wasn’t able to address. Handling the processing and enforcement of these permits is one, with different sets of users completing those tasks who have different needs. The resident process may depend on capabilities of the processing procedure in ways that I did not explore. I also limited myself to redesigning the UI, without taking a look at the user experience of this system - the permit system as it exists now may not be the best way to solve the problem of non-resident cars parked on residential streets for long stretches.
